OTOFIX IM1 Support Key Programming Vehicle List

OTOFIX IM1 main function is key programming (it is an affordable alternative of Autel IM508), therefore,  OTOFIX IM1 supports key programming for more than 2000 models of more than 60 car series. Moreover, OTOFIX IM1 has the abilities of diagnosis and service reset ((both with valid subscription).It features in Smart IMMO Functions, Advanced Features (Able to unlock more with subscription), One-stop Cloud Service (Remote Expert, RealFix, Device/Report Management).

Part 1. OTOFIX IM1 Key Programmer Vehicle Coverage:

https://www.otofixtech.com/vehicle-coverage/coverage2

Just choose product model: IM1 (IMMO), vehicle make, vehicle model, year, function / Sub-function, and then click on "Search".

OTOFIX IM1 Smart IMMO Functions:

1). OBD key programming for 80% of vehicle models

2). Key programming via OBD for Volkswagen IV, V and MQB IMMO system

3). Add key and All Keys Lost programming via OBD from CAS1 to CAS4 and FEM&BDC IMMO system

4). Key programming bypassing PIN code for all 2005-2020 Ford models

5). Key programming bypassing PIN code for 2019-2020 Promaster, DT-RAM, Jeep Commander, etc.

6). Read password for Hyundai Kia key ID46, 47, 4A, 8A, etc.

Autel OTOFIX IM1 Smart IMMO Function Quick guide:

The IMMO application provides Smart Mode and Expert Mode to guide technicians performing IMMO related functions, including Key Learning, Remote Control Learning, Remote Control Add, and more.

Image 1. Sample Function Menu in Smart Mode

Image 2. Sample Expert Selection Mode Function Screen

The IMMO operations require connecting the OTOFIX IM1 tablet to the test vehicle through the OTOFIX V1. To establish proper vehicle communication to the tablet, you need to perform the following steps:

1. Connect theV1to the vehicle’s DLC for both communication and power source.
2. Connect the V1to the tablet via Bluetoothor USB connection.
3. When the above steps are completed, check the VCI navigation button at the bottom bar on the screen. When a green check-mark badge appearsat the lower-right corner, theOTOFIX IM1 is ready to start vehicle diagnosis.

Vehicle Connection:

To connect the V1 to the test vehicle, simply insert the Vehicle Data Connector on the V1 into the vehicle's DLC, which is generally located under the vehicle dashboard. The V1 will automatically power on.

NOTE:

The vehicle's DLC is not always located under the dashboard. Refer to the user manual of the vehicle for additional connection information.

Part  2. Autel OTOFIX IM1 Chip(EERROM,MCU,ECU) Coverage:

The Programmer application, for some vehicles, requires a connection between the tablet and the OTOFIX XP1. In some cases, no vehicle connection is required. This application can access the key chip, read, retrieve and write key information, as well as other key-related functions.

Quick guide:

Connect to the XP1 Programmer first, then follow the on-screen instructions to select a key type. Programming can be accessed from the IMMO app directly following a status scan, or from the Home Screen button. The following describes a programming situation requiring EEPROM programming. These steps should only be carried out by professional technicians.

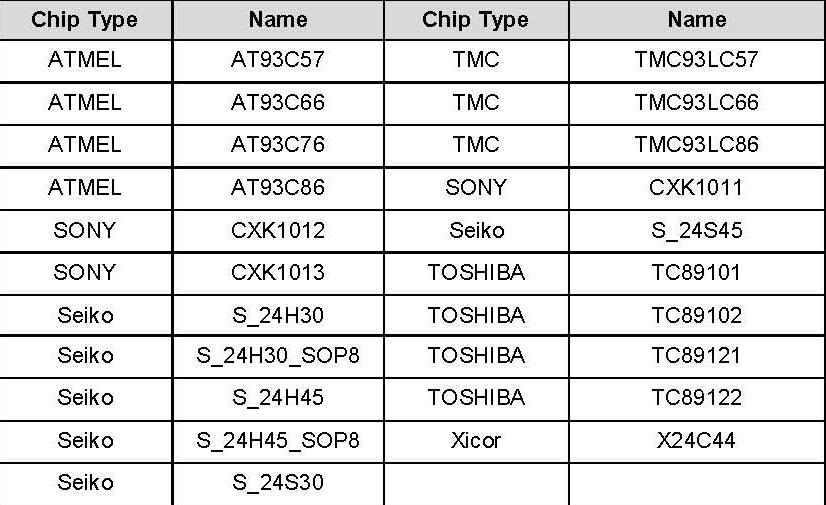

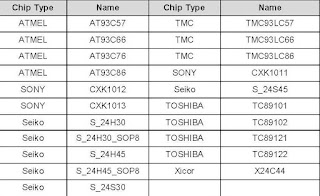

Look at EEPROM Read/write Supported Types by Autel OTOFIX IM1:

Part 3. Autel OTOFIX IM1 Diagnosis Coverage (with valid subscription):

The Diagnostics application can retrieve ECU information, read & erase DTCs, and view live data. The Diagnostics application can access the electronic control unit (ECU) for various vehicle control systems, including engine, transmission, antilock brake system (ABS), and airbag system (SRS).

NOTE :

1. The Diagnostics function can only be accessed with a valid subscription.
2. A message will appear when tapping the Diagnostics icon on the OTOFIX Job Menu for the first time. Read the message and thentap the "Purchase"button to purchase the Diagnostics and Service package.

Part 3. Autel OTOFIX IM1 Service Coverage (with valid subscription):

The Service section is specially designed to provide quick access to the vehicle systems for various scheduled service and maintenance tasks. The typical service procedure screen is a series of menu-driven executive commands. Follow the on-screen instructions to select appropriate execution options, enter correct values or data, and perform necessary actions. The application will display detailed instructions to complete selected service.

NOTE:

1. The Servicefunction can only beaccessed with a valid subscription.
2. A message will appear when tapping the Serviceicon on the OTOFIX Job Menu for the first time. Read the message and thentap the "Purchase" button to purchase the Diagnostics and Service package.

Alright, Autel OTOFIX IM1 Advanced IMMO Key Programmer is in stock here:

 https://www.uobdii.com/wholesale/otofix-im1.html
